model |
7CX-10 |
|
车厢尺寸（mm） |
5000*2500*1600 |
|
外型尺寸（mm） |
6515*2620*2925 |
|
额定载重（kg） |
10000 |
|
自重（kg） |
4500 |
|
轮胎型号/轮数 |
385/65-22.5/4 |
|
刹车形式Brake |
气刹air brake |
|
卸料形式 |
左右自卸 |
|
配套动力（HP） |
80-100 |

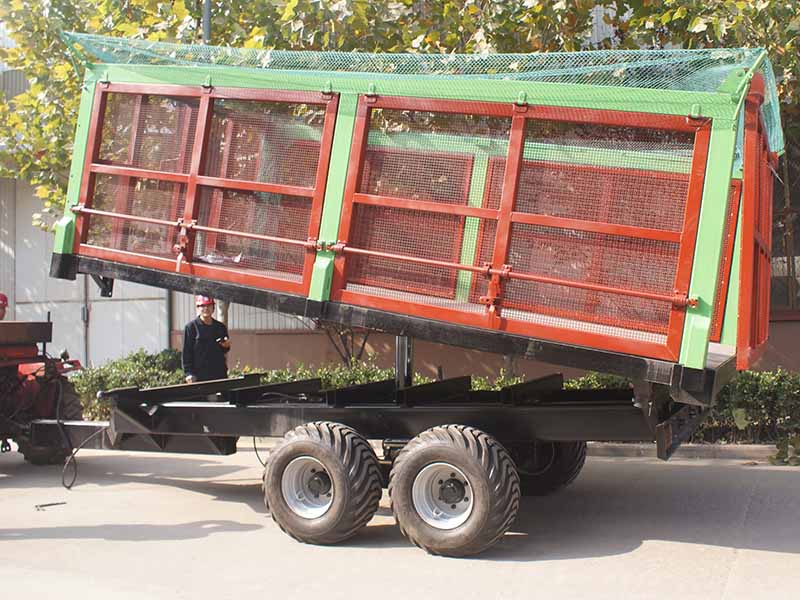

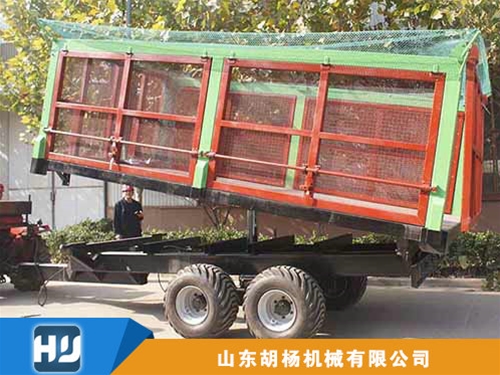

Three-way self-unloading sugarcane trailer, upper and lower two layers, the upper compartment is removable. Driving speed under 30 km/h is designed. The stiffness of the leaf spring is larger than that of the general car trailer, and the carriage vibration is larger when the car is empty or lightly loaded. The service stress of frame girder under static load is 25 ~ 50% higher than that of truck. Tire types are same as the truck, larger load , estimated at 15% more than a truck in twins are available, to avoid the cultivator, easy to clip mud between twins, increased resistance and steering effort, small diameter wide section of low-pressure tires are available, and in order to improve the capacity.
