Trailer

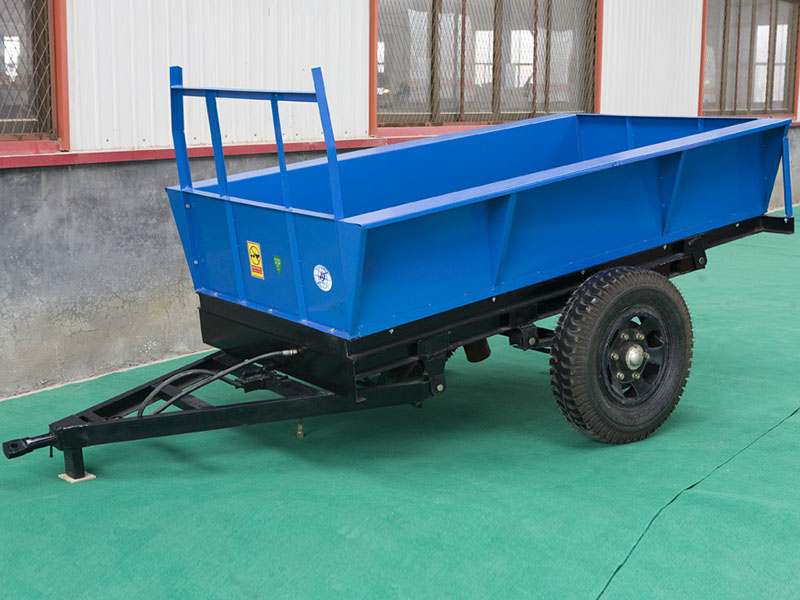

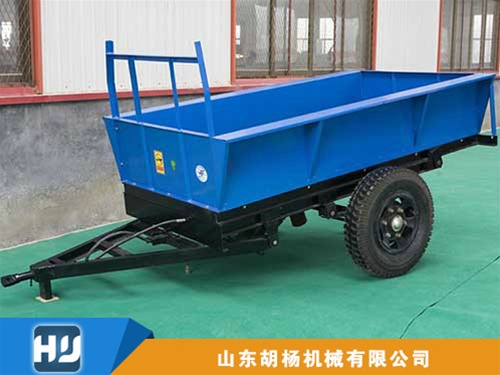

1.5T trailer

名称:1.5T trailer

详细信息

Model

7CX-1.5

(mm)
     Carriage dimension Length*width*height

2000*1000*450

(mm)
     Overall dimensions Length*width*height

3060*1450*1780

(kg)
     Rated weight

1500

(kg)
     Dead weight

450


     Specification of tire

6.50-16/2

Brake

Air brake


     Tipping pattern

tip-back

(HP)
     Matched power

8-12

Suitable for long distance transporting heavy goods under different working conditions; with complete configuration, smooth running, beautiful, durable, high loading efficiency. Matching power 30-100hp. Steering form: unintentional turning,

Damping form: elastic bow plate.  Traction form: tripod live traction.  Self-unloading configuration: double oil cylinder.  Rear taillight, left and right guardrail.  Vehicle wiring harness.  Air way connection: air pipe quick joint.  Circuit connection: screw seven - core wire quick plug.  Oil connection: quick change joint.  Surface treatment: large shot blasting machine to eliminate broken contact force, rust removal,   Oxide skin, antirust paint, top paint, paint treatment.  Welding process: CO2 tooling welding.

Mode of transportation: bulk transportation, flexible packing.
