Trailer

网站首页 / PRODUCTS / Trailer

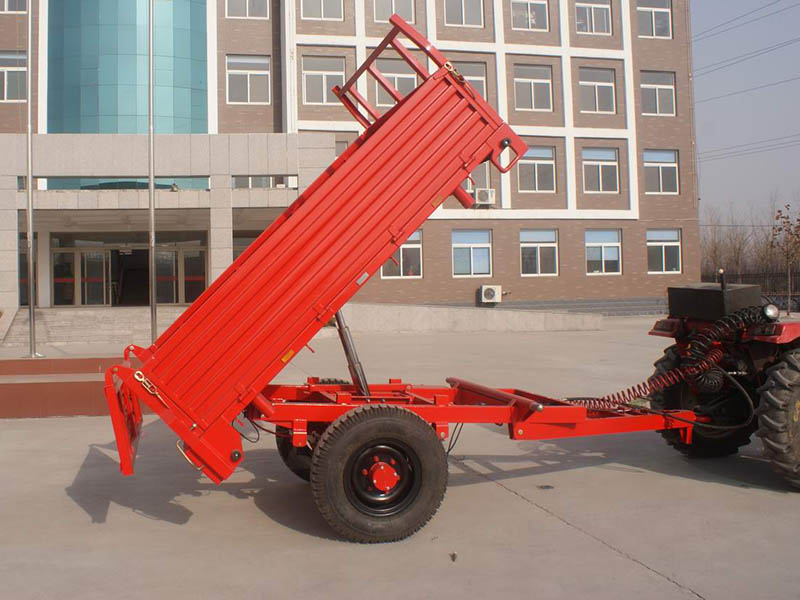

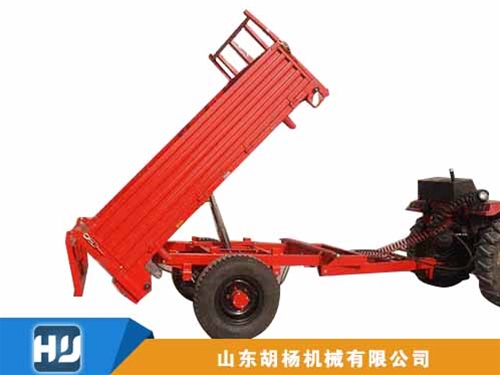

名称：2.5T standard trailer

详细信息

Model	7CX-2.5
（mm） Carriage dimension Lengthwidthheight	25001500460
（mm） Overall dimensions Lengthwidthheight	366016001860
（kg） Rated weight	2500
（kg） Dead weight	600
Specification of tire/Qty	7.50-16/2
Brake	Air brake
Tipping pattern	Tip-back
（HP） Matched power	18-24

Suitable for long distance transporting heavy goods under different working conditions; with complete configuration, smooth running, beautiful, durable, high loading efficiency. Matching power 30-100hp. Steering form: unintentional turning,

Damping form: elastic bow plate. Traction form: tripod live traction. Self-unloading configuration: double oil cylinder. Rear taillight, left and right guardrail. Vehicle wiring harness. Air way connection: air pipe quick joint. Circuit connection: screw seven - core wire quick plug. Oil connection: quick change joint. Surface treatment: large shot blasting machine to eliminate broken contact force, rust removal,

Oxide skin, antirust paint, top paint, paint treatment.

Welding process: CO2 tooling welding.

Mode of transportation: bulk transportation, flexible packing.
