Single axle trailer

网站首页 / PRODUCTS / Single axle trailer

名称：3T double boxboard single trailer

详细信息

Model	7CX-3
车厢尺寸（mm） Carriage dimension Lengthwidthheight	34001700（460+460）
外型尺寸（mm） Overall dimensions Lengthwidthheight	490018201810
额定载重（kg） Rated weight	3000
自重（kg） Dead weight	1160
轮胎型号/轮数 Specification of tire	10.0/75-15.3 16PR/2
刹车形式Brake	气刹air brake
卸料形式 Tipping pattern	rear dump
配套动力（HP） Matched power	24-30

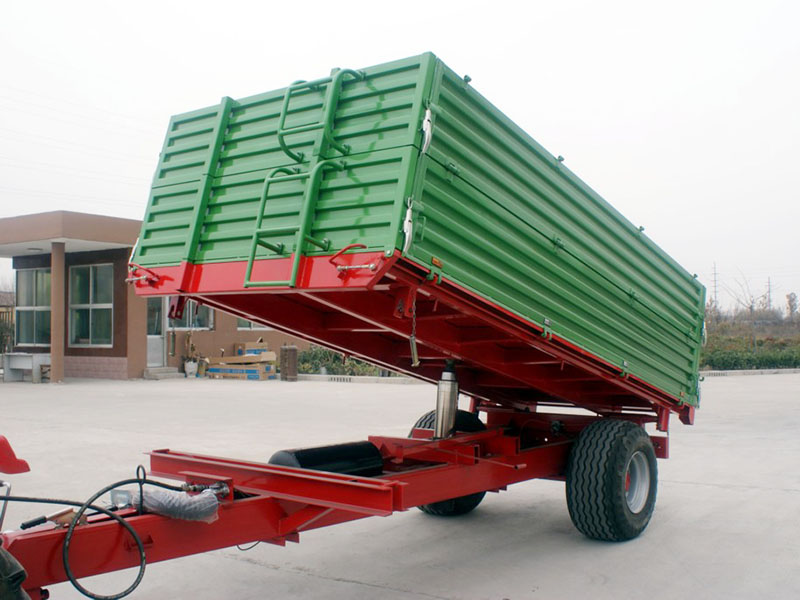

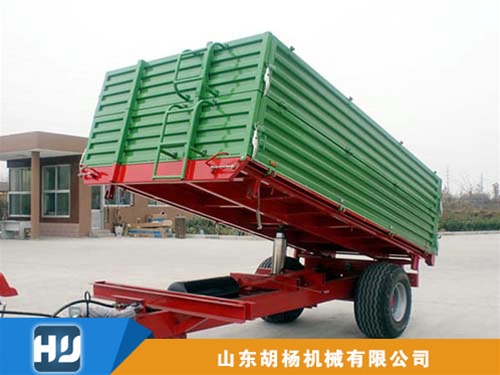

7C series hydraulic dump trailer, can realize left and right tilting, backward self - flipping unloading mode. No shock absorption, self-unloading trailer is my company's patented products, the trailer in the unloading process, can back to the left and right side of the tilt, great convenience due to the small space brought by the inconvenience.

Suitable for the transport of heavy cargo, and long and short distance transport, the car is fully equipped, smooth running, beautiful appearance, durable, extensive operating environment, high loading efficiency.
